BEETLE
Design study
1967 Beetle Profile

Illustration from the VWX design studies

Beetle 1500

Air-Cooled1,500 cc

This is how we would like the year pages to read. It is a study of the layout, the type and where the pictures sit — not a page you can use. The text is the 1967 story, cut short in the places where it quoted figures we cannot source. The whole of it, unabridged, is on the reference page.

Reference review: source-recorded details; historical accuracy has not been comprehensively verified.

What is a concept

  • This page is a design study. Nothing on it is a working feature.
  • The year pages you can read today do not look like this.
  • Every figure here comes from the 1967 record or is left out.
1500 Badge
Fig A. The Badge

The Revelation.

1967: The Summer of Love exploding, Vietnam protests intensifying, and Detroit building ever-bigger engines. VW's response? The same car they'd been building since 1949—only better. The '67 Beetle wasn't a revolution. It was a revelation. While America supersized everything, VW refined nothing. The 1500cc engine made 53 horsepower—a number that would've embarrassed Detroit's marketing department. The body looked identical to 1966. The interior remained spartan. The heater still barely worked. VW wasn't just ignoring the horsepower race; they were running in the opposite direction. It was the perfect car for an era questioning everything. The counterculture didn't choose the Beetle. The Beetle chose the counterculture.

19.5s

0 - 60 mph

1,500cc

Displacement

7.5:1

Compression ratio

From the 1967 standard sedan record.

Full Technical Specs

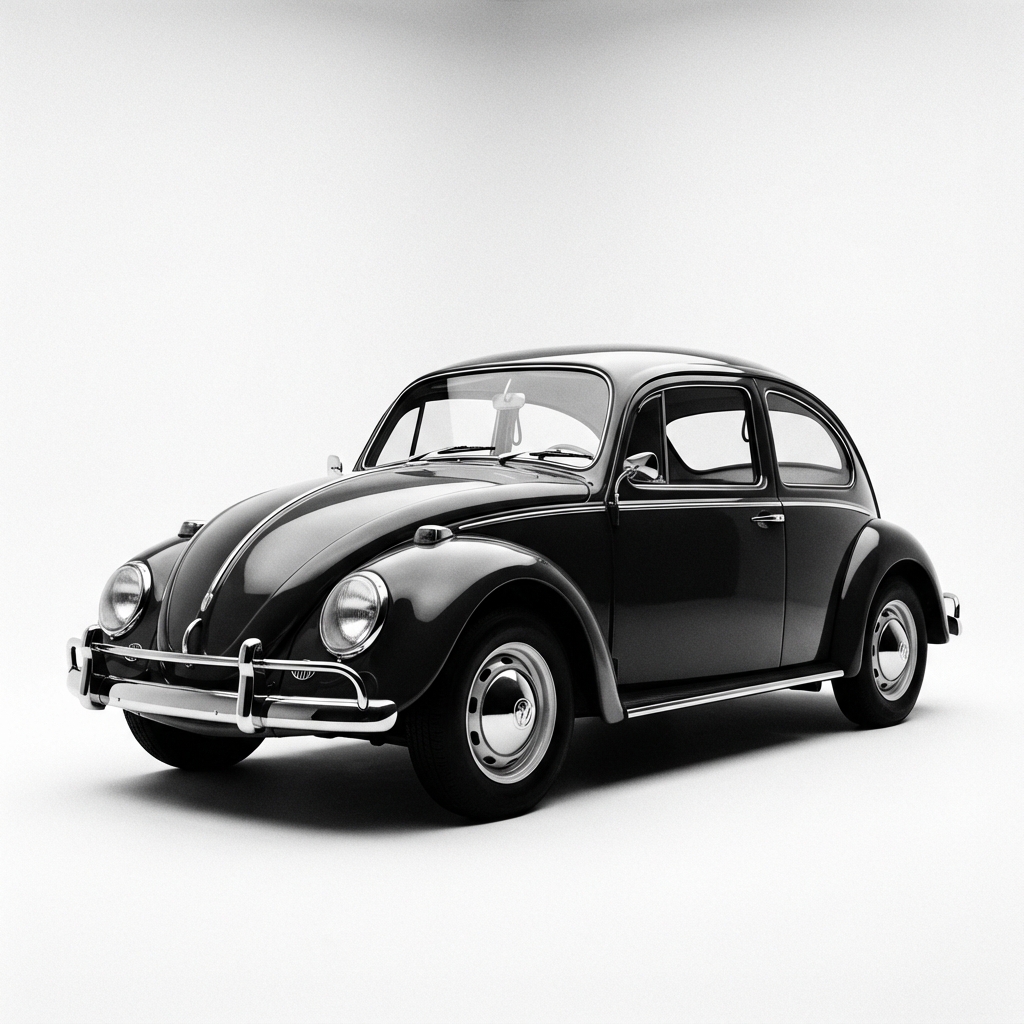

1967 Beetle Front View
Speedometer
Fig B. The Gauge

What It Was

The '67 Beetle was minimalism perfected. Let's count what you didn't get: No power steering (who needs it at 1,800 pounds?). No automatic transmission (shift it yourself, feel something). No radiator (air is free). No pretense (that was extra). What you did get: 1500cc flat-four making 53 honest horsepower, dual-port heads for better breathing, 12-volt electrical system (welcome to the future), ball-joint front suspension, and the best heater VW had ever built (which is like being the tallest jockey). The body was pure Beetle—steel, simple, shaped by wind tunnels before anyone cared about aerodynamics. Inside: vinyl seats, four-speed manual, two-speed wipers, and the world's most optimistic fuel gauge. The trunk was in front. The engine was in back. Logic was optional.

What Made It Special

The '67 was the Beetle hitting its stride. The 1500cc engine with dual-port heads transformed the car from slow to... less slow. But that misses the point. The dual-port design meant better breathing, smoother power delivery, and the ability to maintain speed on hills without downshifting to first and praying. The 12-volt electrical system meant reliable starting and headlights that actually illuminated things. The ball-joint front end improved handling without compromising the Beetle's character. It was still a Beetle, just... better. VW had spent 18 years refining the same basic car. In '67, they nailed it. Not with revolution, but with relentless evolution. While Detroit reinvented their cars annually, VW kept polishing the same diamond. It wasn't perfect. It was better than perfect—it was honest.

Technical Specifications (The Evidence)

Displacement
1,500 cc
Configuration
Air-cooled flat-4
Engine code
H
Bore / stroke
83mm / 69mm
Compression ratio
7.5:1
Fuel system
Solex 30 PICT-1 carburetor
Transmission
4-speed manual
Front suspension
Torsion bar
Rear suspension
Swing axle
0 - 60 mph
19.5 s
1967 Beetle Vintage Campaign

Illustration from the VWX design studies

Drive.

The heart of the 1967 Beetle beats in the rear, and sets the pulse of VW enthusiasts racing as reliably as it did when it left Wolfsburg.

1500cc Engine

1.5-liter air-cooled flat-4.

The 1500cc engine with dual-port heads: better breathing, and a flat-four that sits low and behind you.

4-Speed Transmission

4-speed manual transmission.

A perfectly weighted gearbox that makes every shift an event. Direct connection to the road, demanding skill but rewarding attention.

Cultural Context

1967 was the year America's postwar consensus cracked. Vietnam divided the nation. The counterculture questioned everything. Detroit was building 400-horsepower muscle cars while students protested war. Gas was cheap, cars were huge, and the American Dream came with a V8. Enter the Beetle—small when everything was big, simple when complexity was king, honest when marketing was mastering the art of beautiful lies. The Beetle became counterculture transport not through marketing but through alignment. It rejected excess naturally. It embraced utility honestly. It was the automotive equivalent of sitting out the rat race. The Summer of Love needed wheels. The Beetle was there, unchanged, uncompromised, unapologetic. Jefferson Airplane bought them. College students bought them. Artists bought them. Not because VW marketed to the counterculture—VW was too square for that—but because the car's values perfectly matched the moment. Sometimes the zeitgeist chooses you.

Shifter
Fig D. The Interface

How It Drove

In 1967, the Beetle drove like nothing else. That was both good and bad. The 53-horsepower engine moved you with determined indifference. Zero to 60 happened... eventually. But the chassis was light, the steering direct, and the four-speed gearbox a masterclass in mechanical satisfaction. It understeered until it oversteered—sometimes in the same corner. The brakes worked through philosophical reasoning rather than hydraulic force. Today? It's a time machine. Modern traffic makes 53 horsepower feel theoretical. But the experience is pure. No power steering means you feel everything. No sound insulation means you hear the flat-four's determined thrash. The heater still doesn't work. The wipers still quit in heavy rain. It's glorious. You don't drive a '67 Beetle to get somewhere. You drive it to remember when getting there was the whole point.

Who Bought It

The '67 Beetle attracted three distinct tribes: First, the Rationalists—teachers, professors, engineers who appreciated the mechanical honesty and logical design. They bought the Beetle with their heads. Second, the Counterculture—students, artists, musicians who saw the car's rejection of excess as a rolling statement. They bought with their hearts. Third, the Pragmatists—families who needed reliable, affordable transport and didn't care about horsepower races or cultural statements. They bought with their wallets. VW's marketing spoke to the Rationalists, but the car spoke to everyone else. The Beetle transcended its marketing. It became what you needed it to be—transportation, statement, or both. In 1967, that was revolutionary.

Evolution

The '67 represented Peak Beetle—the perfect evolution of the original concept. The journey there: 1961 brought the larger engine (1200cc). 1965 gave us the ball-joint front suspension. 1966 added the 1300cc option. Then 1967: 1500cc dual-port, 12-volt electrics, better heating (relatively speaking). After '67, changes were mostly regulatory—emissions controls, safety features, bigger bumpers. The purity peaked here. The platform was unchanged—same torsion bar suspension, same flat-four architecture, same basic body. But every component had been refined, improved, perfected. The '67 wasn't the last great Beetle. But it was the last pure one. Everything after was compromise with progress.

Today

Today, the '67 Beetle sits in value purgatory—not old enough to be 'early,' not new enough to be 'last.' That's good news for buyers. The '67 is the sweet spot—best of the pure Beetles, before federal regulations changed everything. That's exactly how it should be.

No values here. A number without its sources is decoration.

Rust Diagram
Fig E. Structural Weak Points

Restoration

Restoring a '67 Beetle is like building a German puzzle with American tools and Mexican parts. Common issues: Heater channels rust (check with a magnet, then check again). Floor pans dissolve (they all do). Engine tin corrodes. Wiring gets creative. Good news? Every part exists. Bad news? Quality varies wildly. The 12-volt conversion is already done (thanks, 1967). What it costs depends on who does the work, and we are not going to guess for you. But here's the truth: These cars were built to be fixed. Basic tools, basic skills, and patience will keep one running. Perfect is the enemy of driving.

The Bottom Line

The 1967 Beetle is the one to buy if you want the purest expression of the air-cooled idea. It's the best of the simple ones, before safety and emissions regulations complicated everything. It's slow. It's noisy. The heater is theoretical. Buy one anyway. In a world of digital everything, the '67 Beetle is gloriously analog. It demands attention, rewards skill, and teaches patience. It's the automotive equivalent of vinyl records—not because it's better, but because it's more honest. Perfect for an era rediscovering authenticity. Just check those heater channels first.

Highlights.

1500 Badge

The 1500 Badge.

The proud declaration of the 1500cc engine. Dual-port heads, better breathing, and a badge that told you which one you had bought.

12V Electrical

12-Volt Electrics.

Welcome to the future. The 1967 upgrade from 6 to 12 volts meant brighter headlights, reliable starting, and the ability to actually see where you were going at night.

Reference.

Factory Colors (1967)

Black

L41

Diamond Grey

L243

Pearl White

L87

Anthracite

L469

Beryl Green

L478

Java Green

L518

Sea Blue

L360

Panama Beige

L572

Baltic Blue

L539

Roulette Green

L544

Sea Sand

L568

Fontana Grey

L595

Bahama Blue

L519

VW Blue

L633

Granada Red

L650

Lotus White

L282

Zenith Blue

L639

Codes, names and hexes from the VWX colour reference. Availability ranges are source-recorded and are not model-specific.

Browse the colour reference

Read the real thing.

The study stops here. The 1967 reference page carries the story in full, the specifications and the colours, and it is the page we would be redesigning.

Read the 1967 reference

Tell us what you think

  • Should the year pages read like this?
  • What would you cut?
